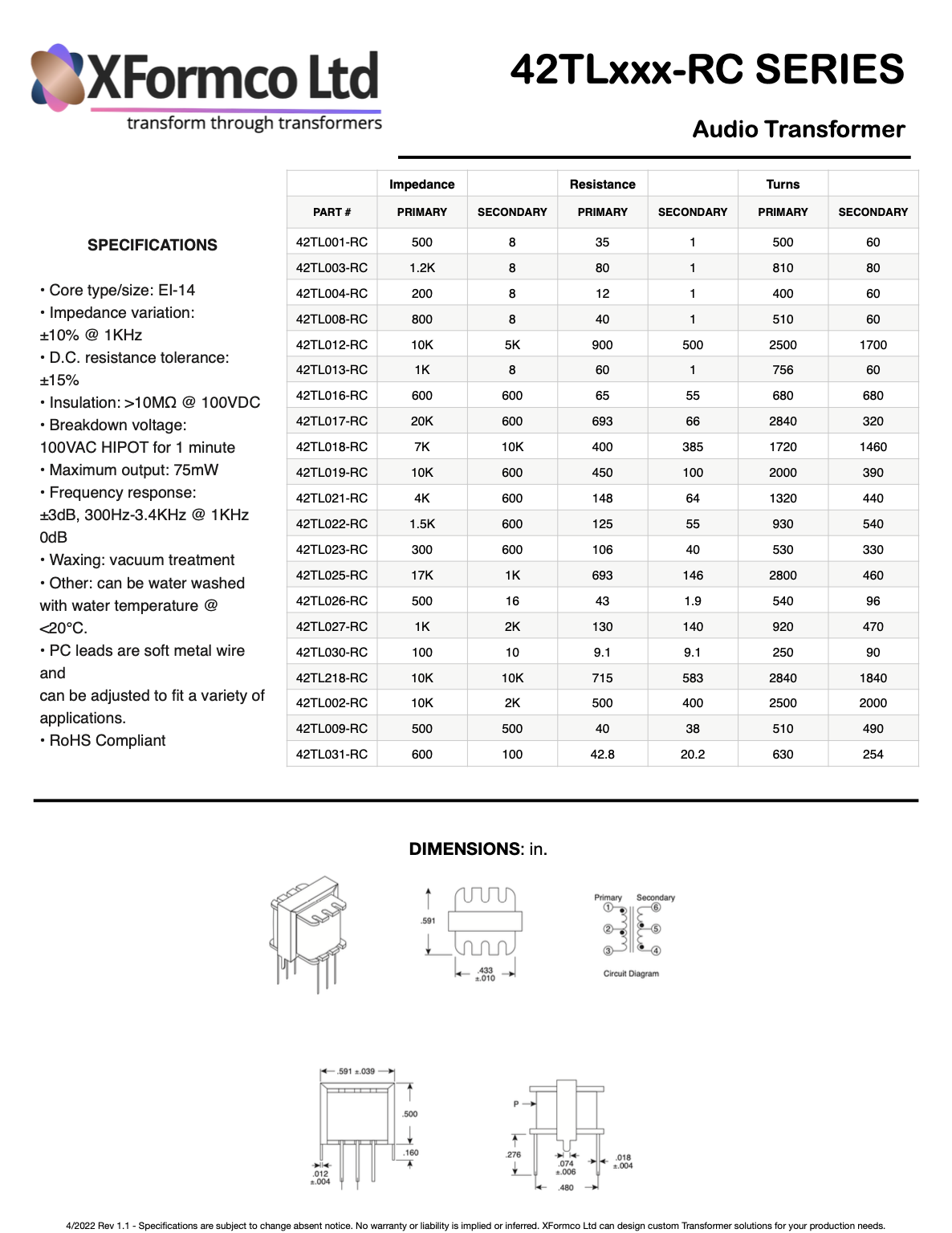

42TLxxx-RC SERIES

Signal Transformers

Typical Production Lead Time for non-factory stock is 4-5 weeks ARO

Specifications:

• • Core type/size: EI-14

  • Impedance variation:

  ±10% @ 1KHz

  • D.C. resistance tolerance: ±15%

  • Insulation: >10MΩ @ 100VDC

  • Breakdown voltage:

  100VAC HIPOT for 1 minute

  • Maximum output: 75mW

  • Frequency response:

  ±3dB, 300Hz-3.4KHz @ 1KHz 0dB

  • Waxing: vacuum treatment

  • Other: can be water washed

  with water temperature @ <20°C.

  • PC leads are soft metal wire and

  can be adjusted to fit a variety of

  applications.

  • RoHS Compliant
