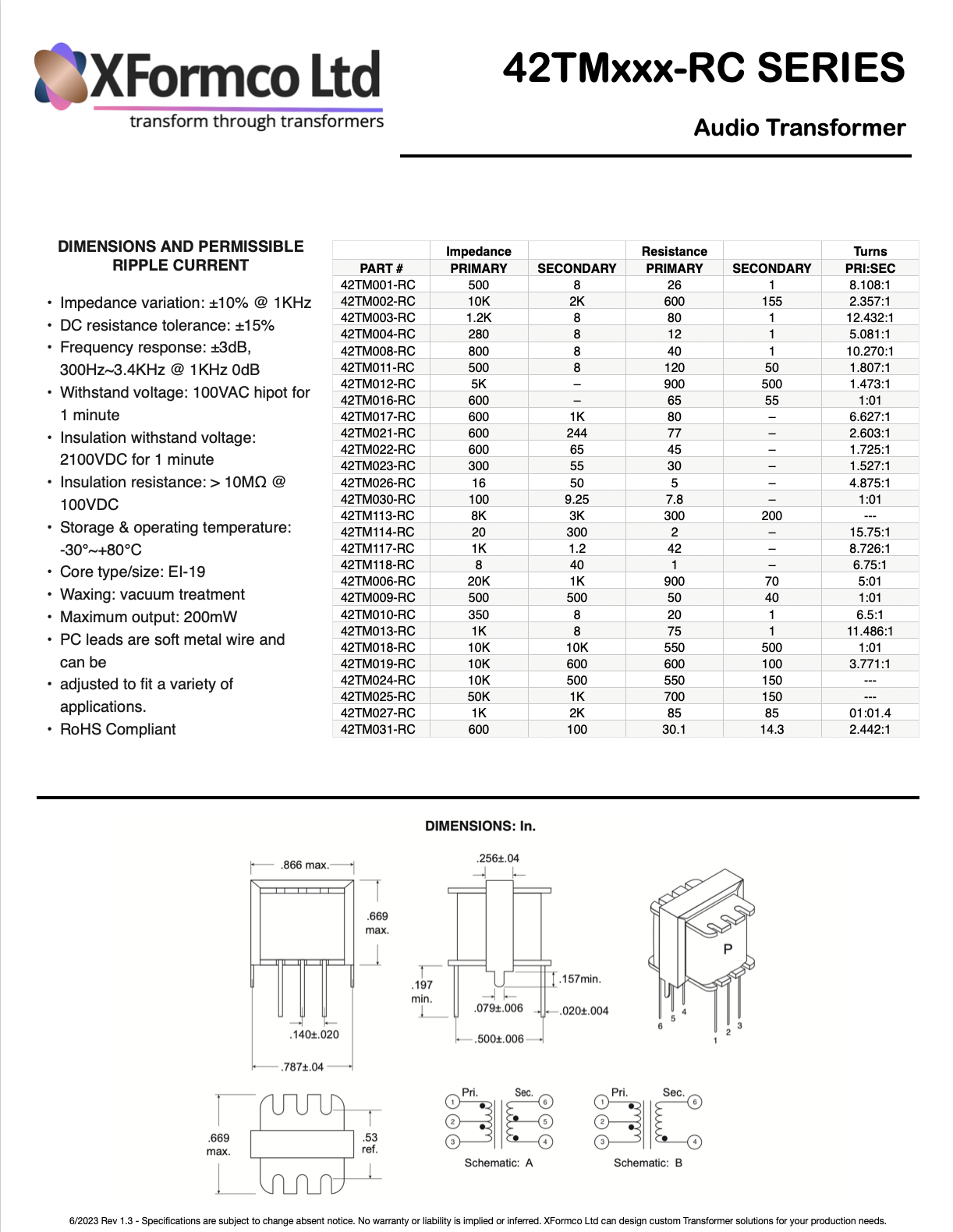

42TMxxx-RC SERIES

Audio Transformers

Typical Production Lead Time for non-factory stock is 4-5 weeks ARO

Specifications:

• Impedance variation: ±10% @ 1KHz

• DC resistance tolerance: ±15%

• Frequency response: ±3dB, 300Hz~3.4KHz @ 1KHz 0dB

• Withstand voltage: 100VAC hipot for 1 minute

• Insulation withstand voltage: 2100VDC for 1 minute

• Insulation resistance: > 10MΩ @ 100VDC

• Storage & operating temperature: -30°~+80°C

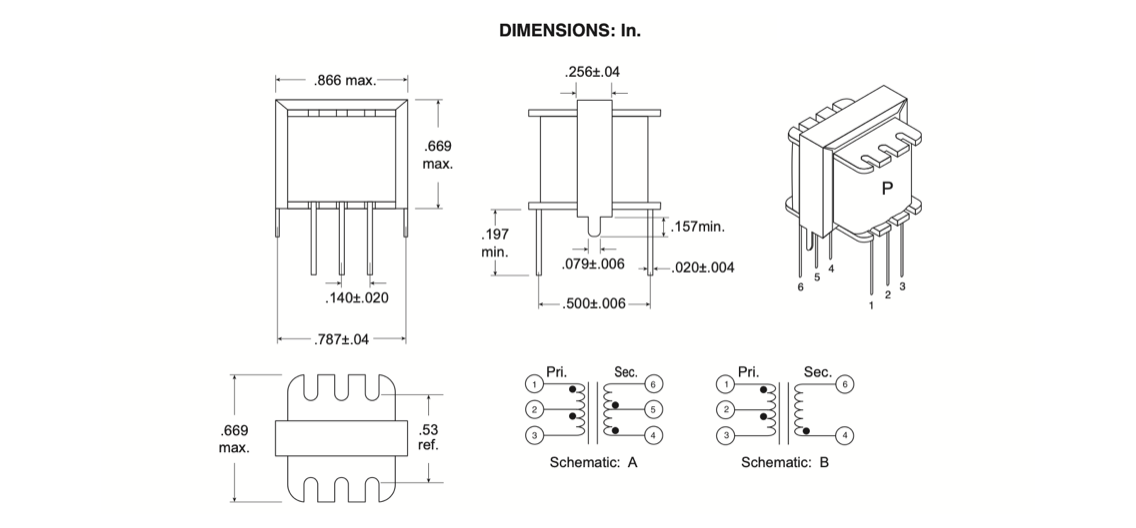

• Core type/size: EI-19

• Waxing: vacuum treatment

• Maximum output: 200mW

• PC leads are soft metal wire and can be

• adjusted to fit a variety of applications.

• RoHS Compliant
