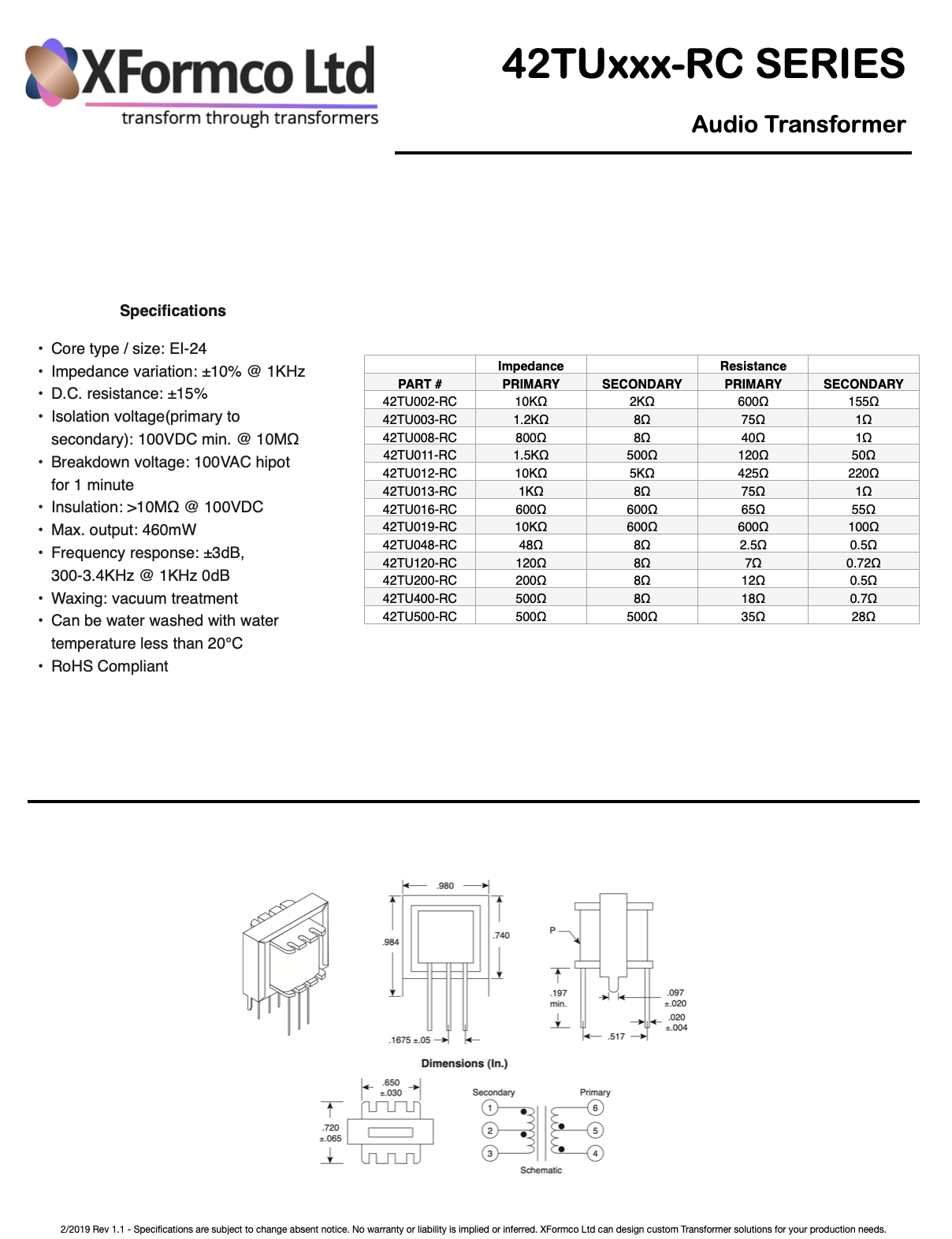

42TUxxx-RC SERIES

Signal Transformers

Typical Production Lead Time for non-factory stock is 4-5 weeks ARO

Specifications:

• Core type / size: EI-24

• Impedance variation: ±10% @ 1KHz

• D.C. resistance: ±15%

• Isolation voltage(primary to secondary): 100VDC min. @ 10MΩ

• Breakdown voltage: 100VAC hipot for 1 minute

• Insulation: >10MΩ @ 100VDC

• Max. output: 460mW

• Frequency response: ±3dB, 300-3.4KHz @ 1KHz 0dB

• Waxing: vacuum treatment

• Can be water washed with water temperature less than 20°C

• RoHS Compliant
