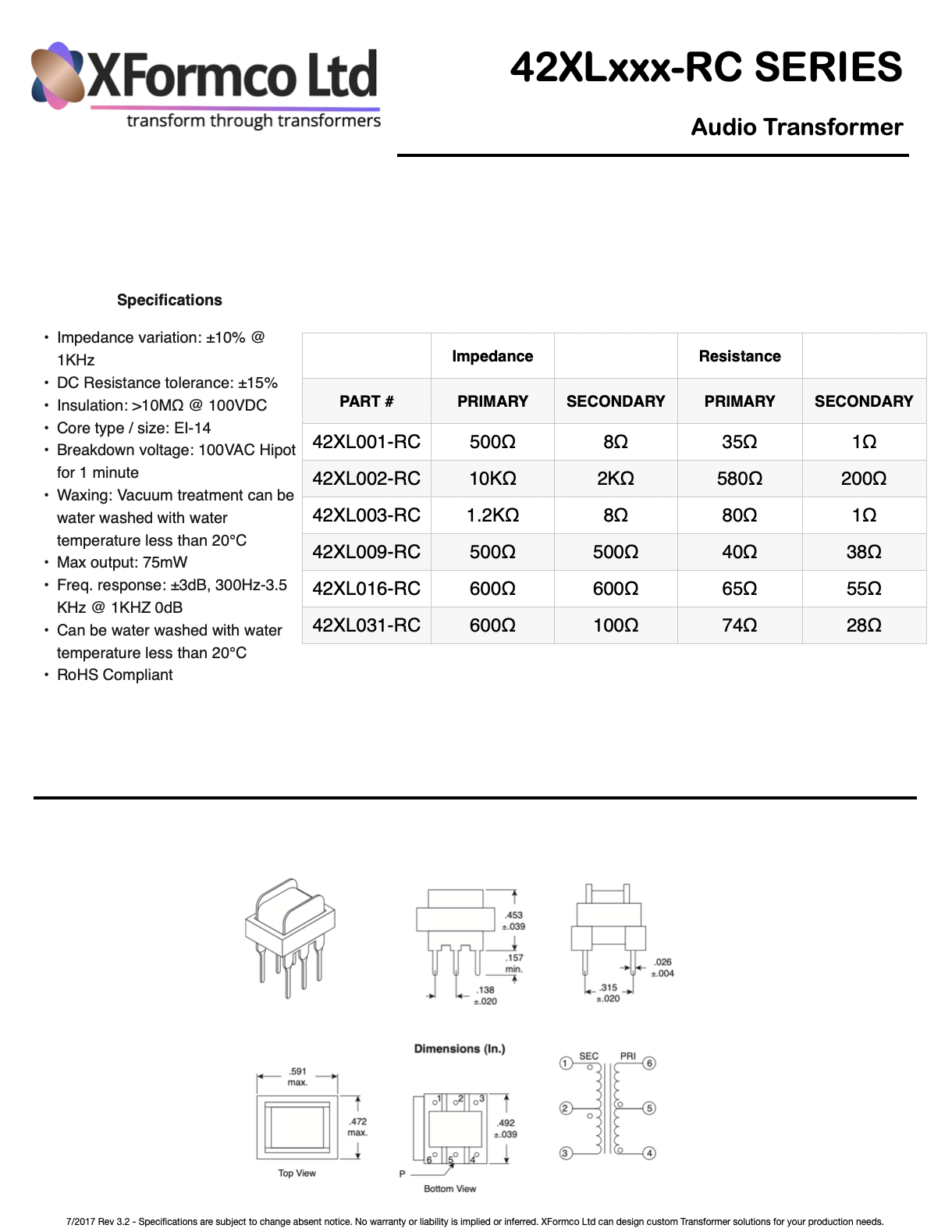

42XLxxx-RC SERIES

Audio/Signal Transformers

Typical Production Lead Time for non-factory stock is 4-5 weeks ARO

Specifications:

• Impedance variation: ±10% @ 1KHz

• DC Resistance tolerance: ±15%

• Insulation: >10MΩ @ 100VDC

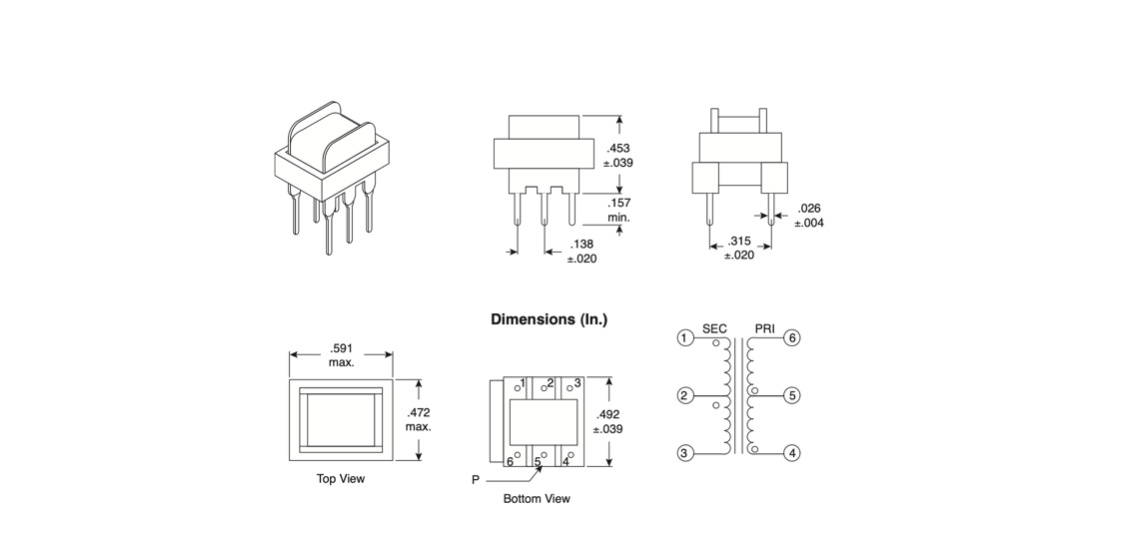

• Core type / size: EI-14

• Breakdown voltage: 100VAC Hipot for 1 minute

• Waxing: Vacuum treatment can be water washed with water temperature less than 20°C

• Max output: 75mW

• Freq. response: ±3dB, 300Hz-3.5 KHz @ 1KHZ 0dB

• Can be water washed with water temperature less than 20°C

• RoHS Compliant
